Description

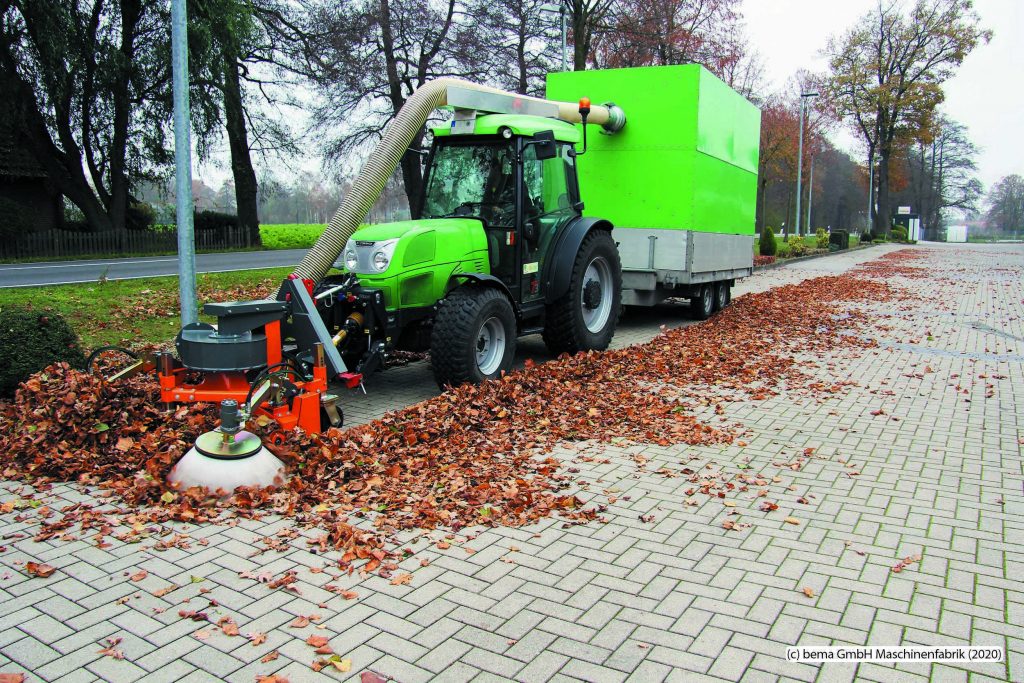

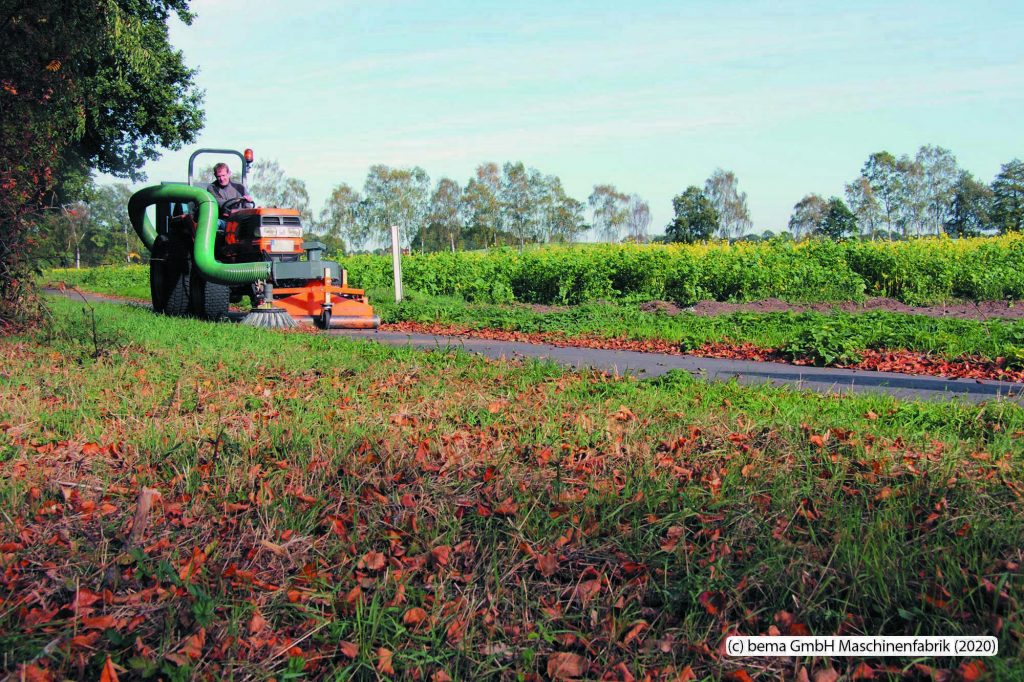

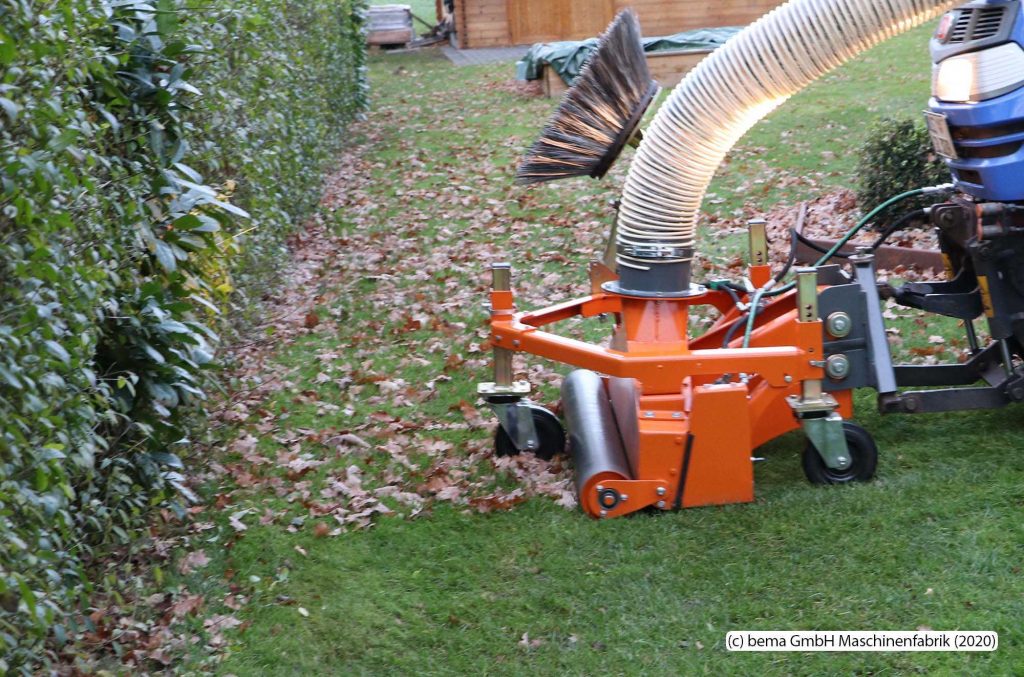

At demopark 2019, the bema suction sweeper was awarded the silver medal as a technical innovation. Since then it has been used on yard loaders, municipal vehicles and compact tractors. No matter if leaves, green waste, waste or other garbage, the oscillating infeed roller ensures a trouble-free infeed. For convincing cleaning results, a fully-fledged sweeping roller was installed. This roller also removes stuck sweeping material from the surface before suction. Like the sweeping roller, the guide wheels are height-adjustable, so that different surfaces are no problem. As part of the new product line, the bema suction sweeper offers a wide range of possible combinations. The suction sweeper is available with or without chaff blower and can be combined with existing suction containers or trailers as well as with the new bema tipping container. Here you can see a selection of possible combinations
-
Attachment System Types

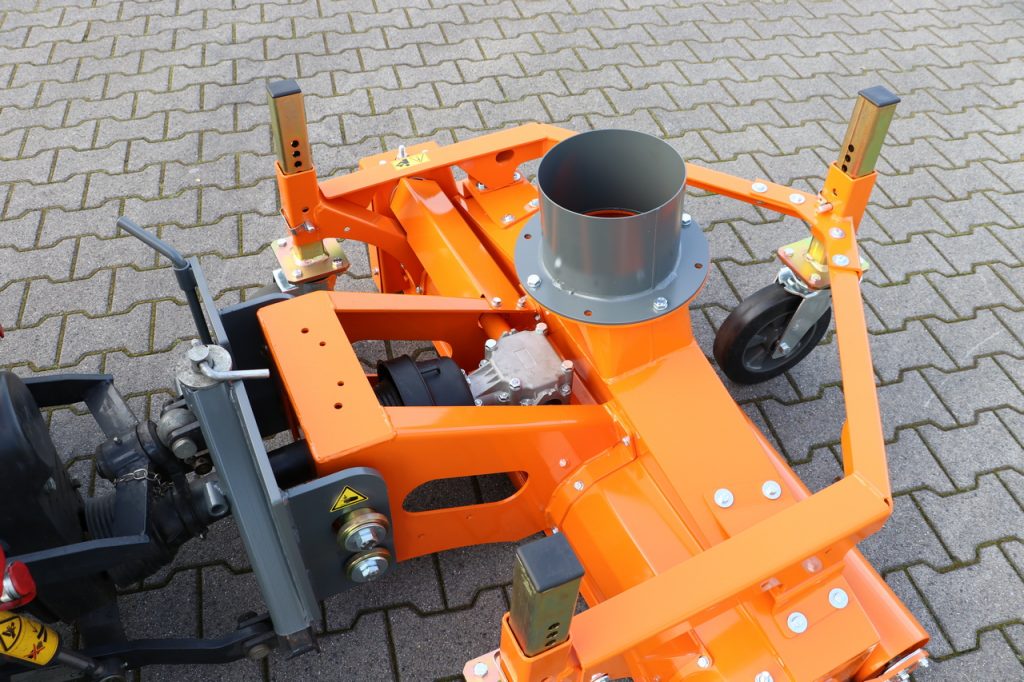

Three-point linkage for tractor coupling Cat. 0/I/II;Quick change adaptor (as light weight equipment for yard and small loaders up to 0,4m³ bucket capacity, Euronorm; all accessory parts are mounted in pendulum fashion for horizontal adjustment in case of floor unevennes);Municipal vehicals;Unimog–Truck lift attachment for universal winter service plate with roller controlled vertical lifting and roller levelling (in combination with mechanical drive on request);Laterally shifted mounting (on request)
-
Health and Safety
Bema Sweepers UK & Ireland ensures that all applicable products are compliant with British/European standards and come with a CE/UKCA mark.
-
Warranty
Bema Sweepers UK & Ireland offer a 12 (twelve) month warranty on all new products effective from the date of despatch from Bema UK & Ireland which covers against faulty materials and workmanship. The warranty is exclusively to the supplying agent. The warranty is on condition that the fault is reported immediately to the agent, and that the faulty component/ part is made available to Bema UK & Ireland via the agent. Replaced parts carry a 90-day warranty. Bema UK & Ireland’s warranty does not cover faults caused by inadequate maintenance, improper use, modification or incorrect installation. Bema UK & Ireland warranty does not cover wear and tear. Within the warranty period, testing or fault diagnosis at the request of the agent will be carried out without charge to the agent if the defects are established to be manufactures fault, otherwise the purchaser is liable for all costs. Warranty does not cover malicious or accidental damage.
bema Suction sweeper
AN OUTSTANDING SOLUTIONMuch more than just removing leaves
Spare Parts
Do you want spare parts for this product?Specification
Working Width (mm)
1200; with two rotary side brushes extendable to 1800
Brush Speed
Recommended 100 to max. 150 rpm
Weight for Base Model (kg)
140
Application
Combination sweeping / suctioning
Carrier Vehicle
Yard loader | Municipal vehicles | Compact tractor (front)
Minimum Hydraulic Power of the Carrier Vehicle (L/min)
20 l/min bema Suction Sweeper without chaff blower;30 l/min bema Suction Sweeper with two rotary side brushes;50 l/min bema Suction Sweeper with chaff blower and rotary side brushe(s);
Wheels
Heavy duty wheels, rear wheels Ø 200 x 50 mm and front wheel Ø 250 x 50 mm (height-adjustable, railsafe)Optional Super-elastic wheels (rear wheels Ø 200 x 80 mm / front wheel Ø 250 x 80 mm)
Drive
Hydraulic drive via chain, gerotor motor with drive shaft Ø 25 mm;Optional mechanical drive for sweeping roller (540 / 1000 or 2000 rpm depending on carrier vehicle, not in combination with mechanically driven chaff blower)
Main Brush
Ø 200 mm;PPN (V-shaped arrangement), stepless adjustable

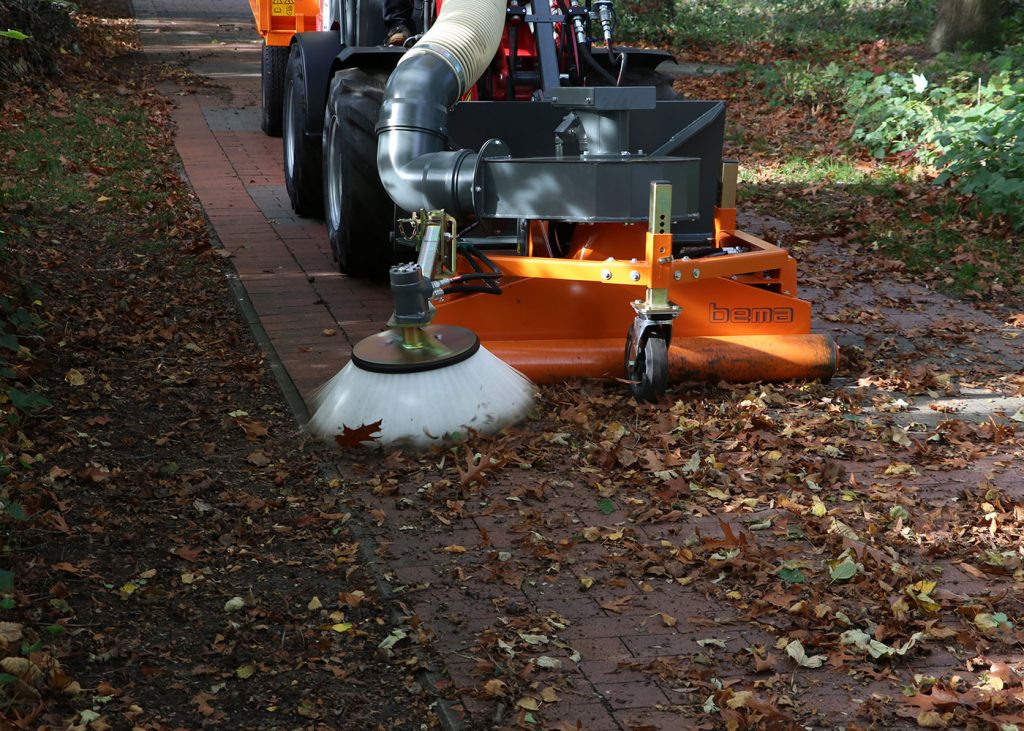

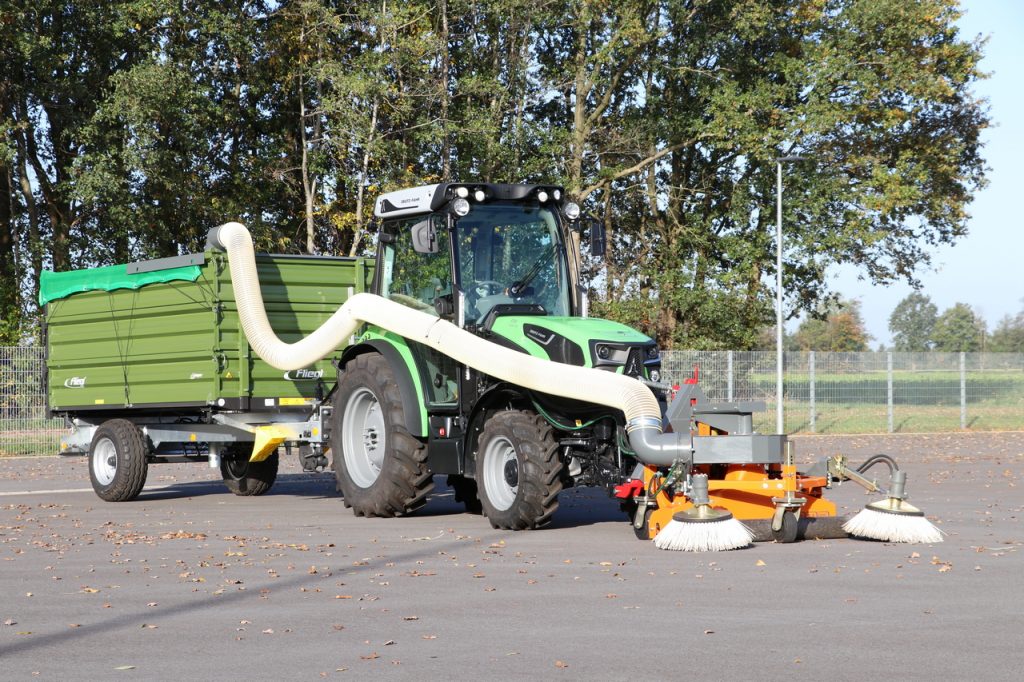

Rotary Side Brushes (optional)
Ø 600 mm;hydraulic drive incl. bema SideControl (comfort operation, combines 3-way valve and speed controller);rotary side brushes are available for the right and/or left side.Selectable brushes: PPN, steel/PPN, steel flat wire/PPN, steel flat wire, weed brush"
