Description
The huge and extremely powerful bema Jumbo masters tough conditions on the construction site, in recycling yards and surface mining/extraction operations, at airports, inland ports and seaports or in the field of snow and ice clearance. Thanks to its robust construction and particularly strong attachment, this free sweeping machine is ideally suited for use on heavy carrier vehicles.
-
Attachment System Types

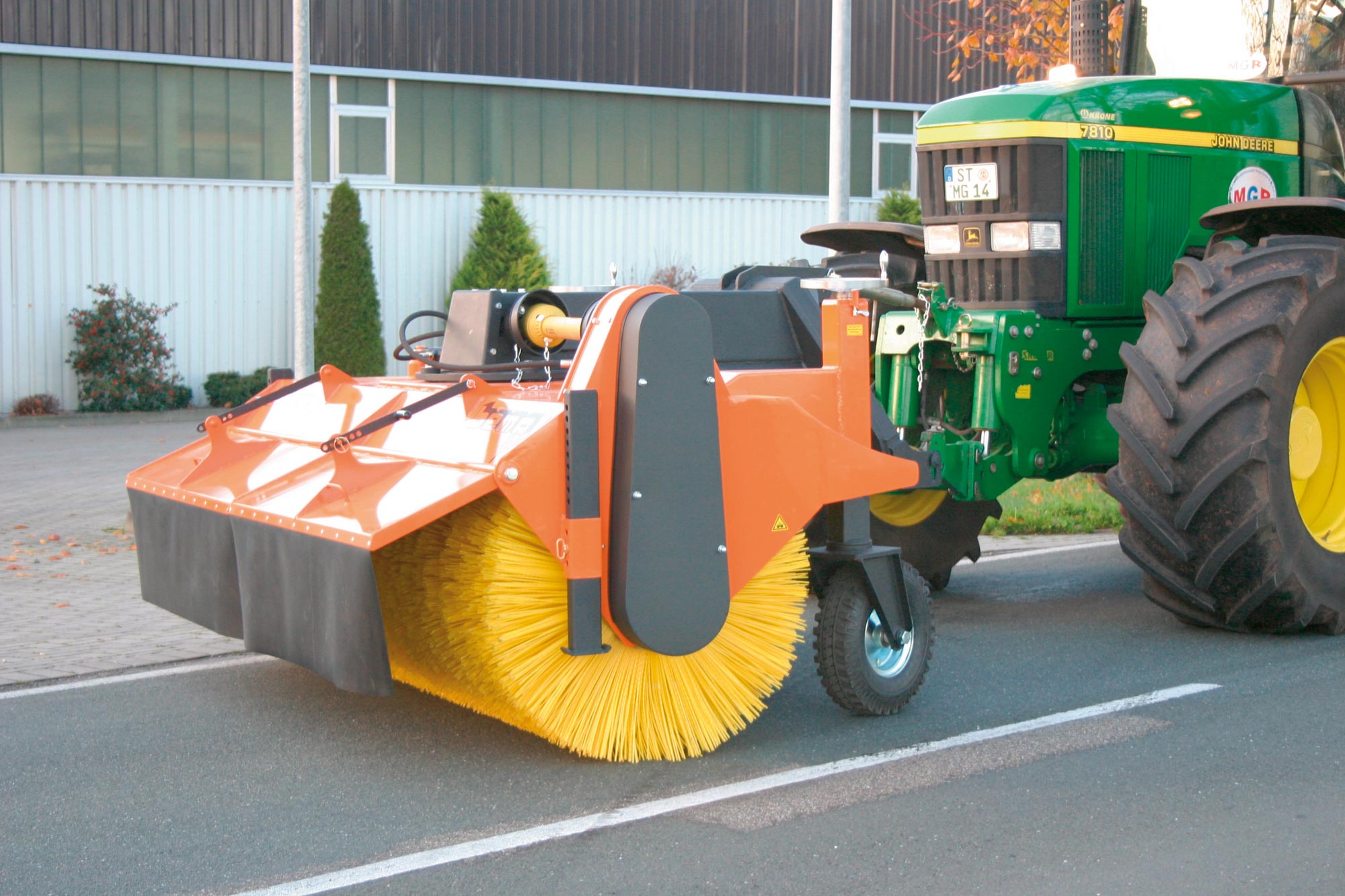

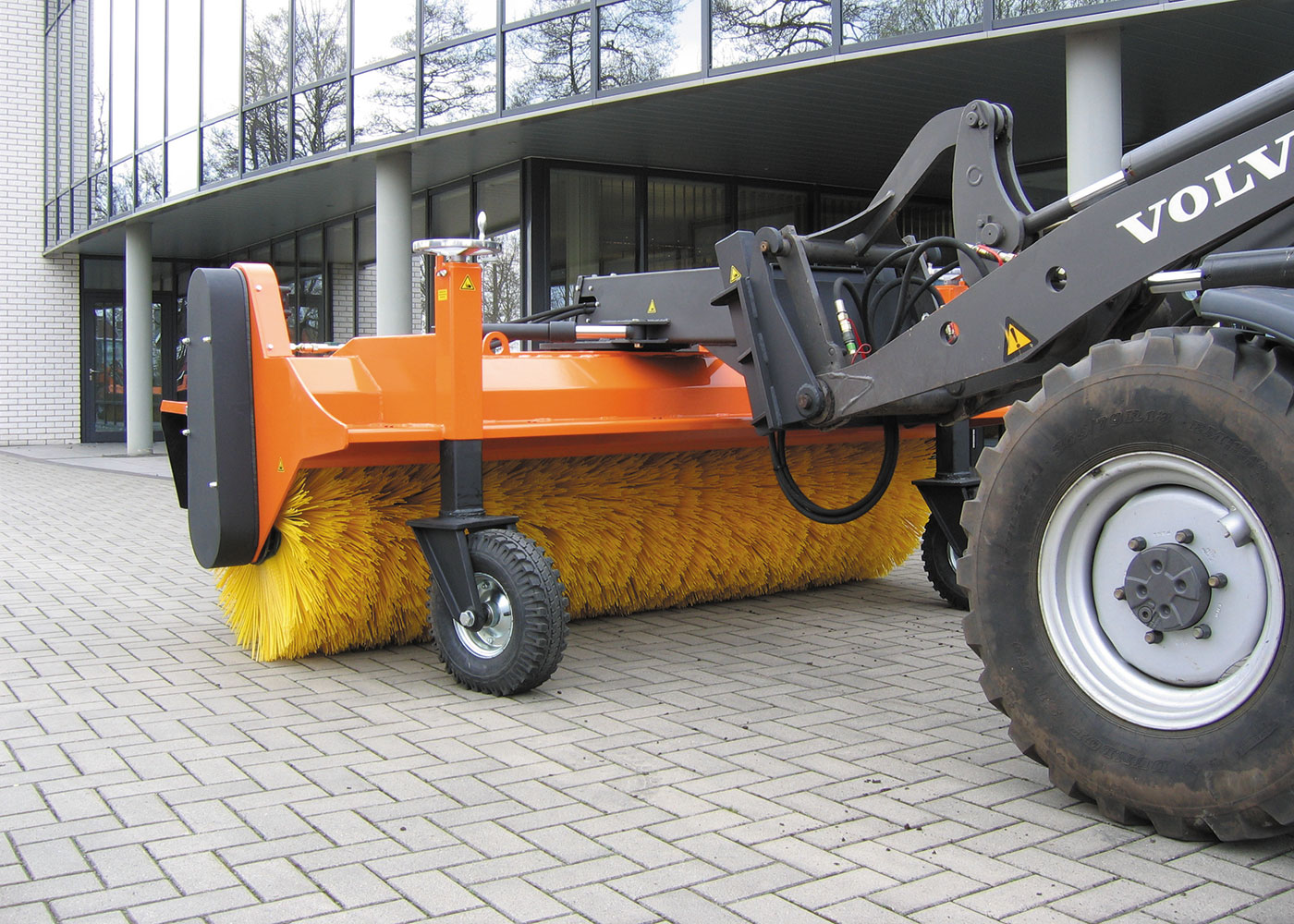

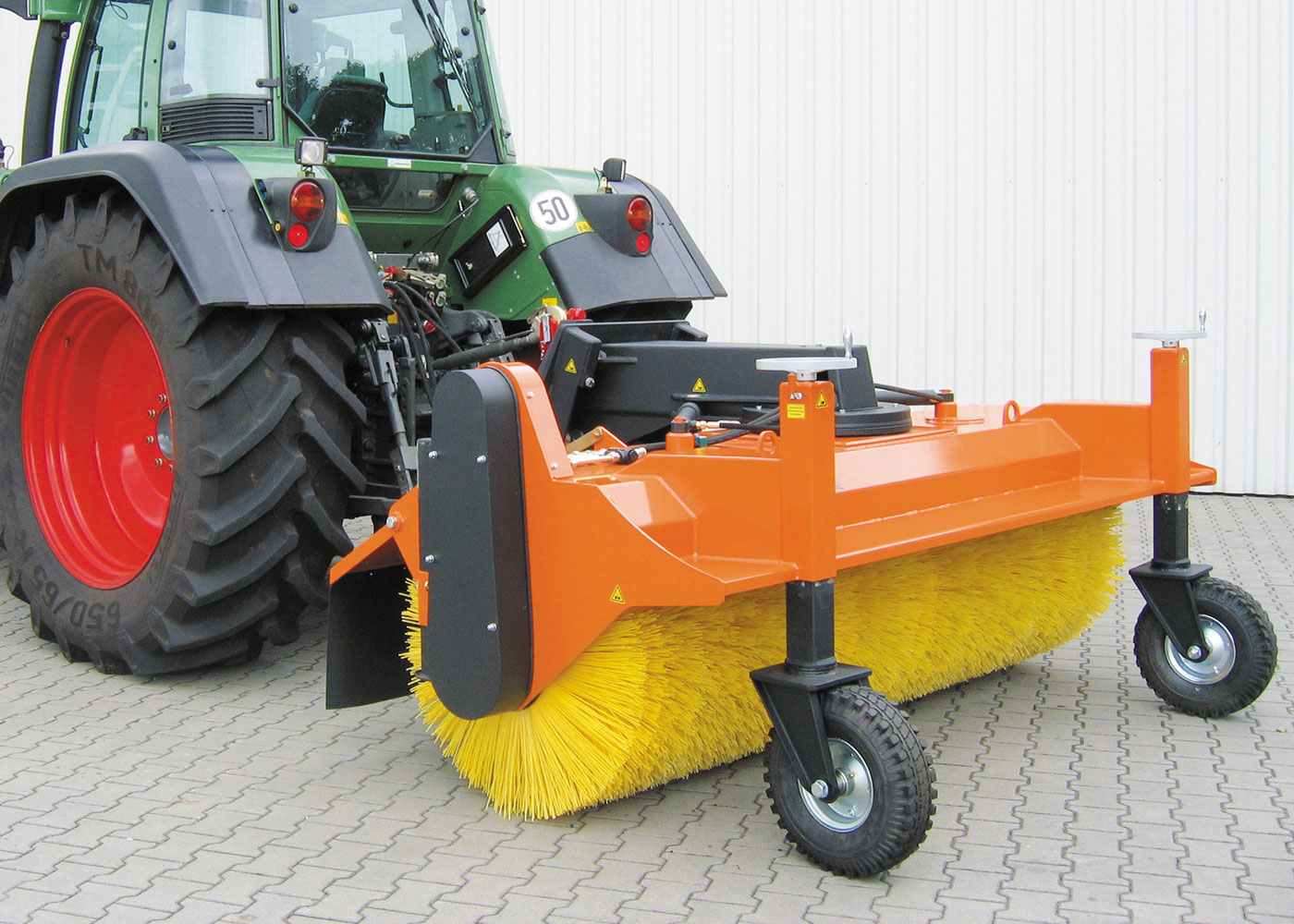

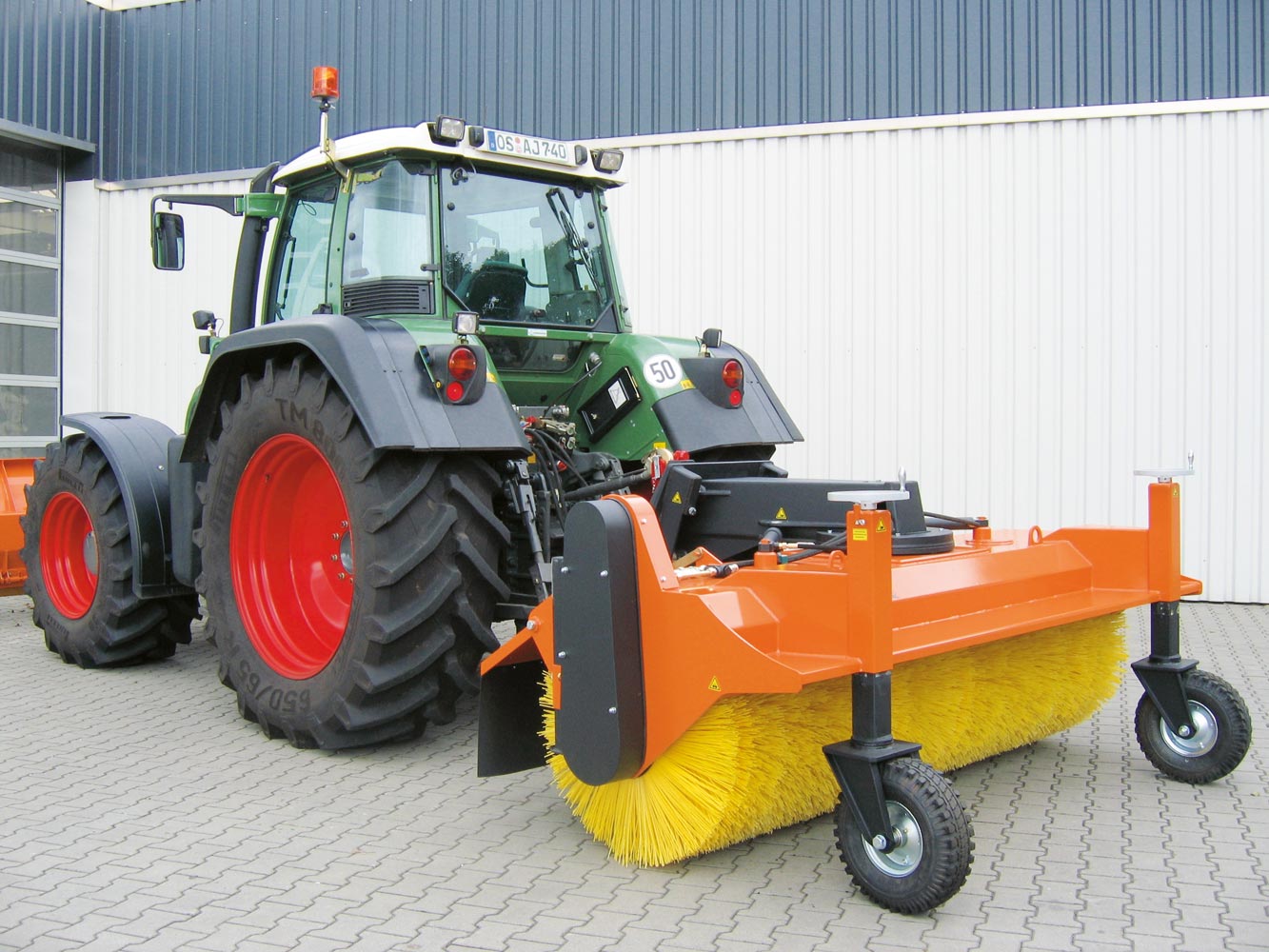

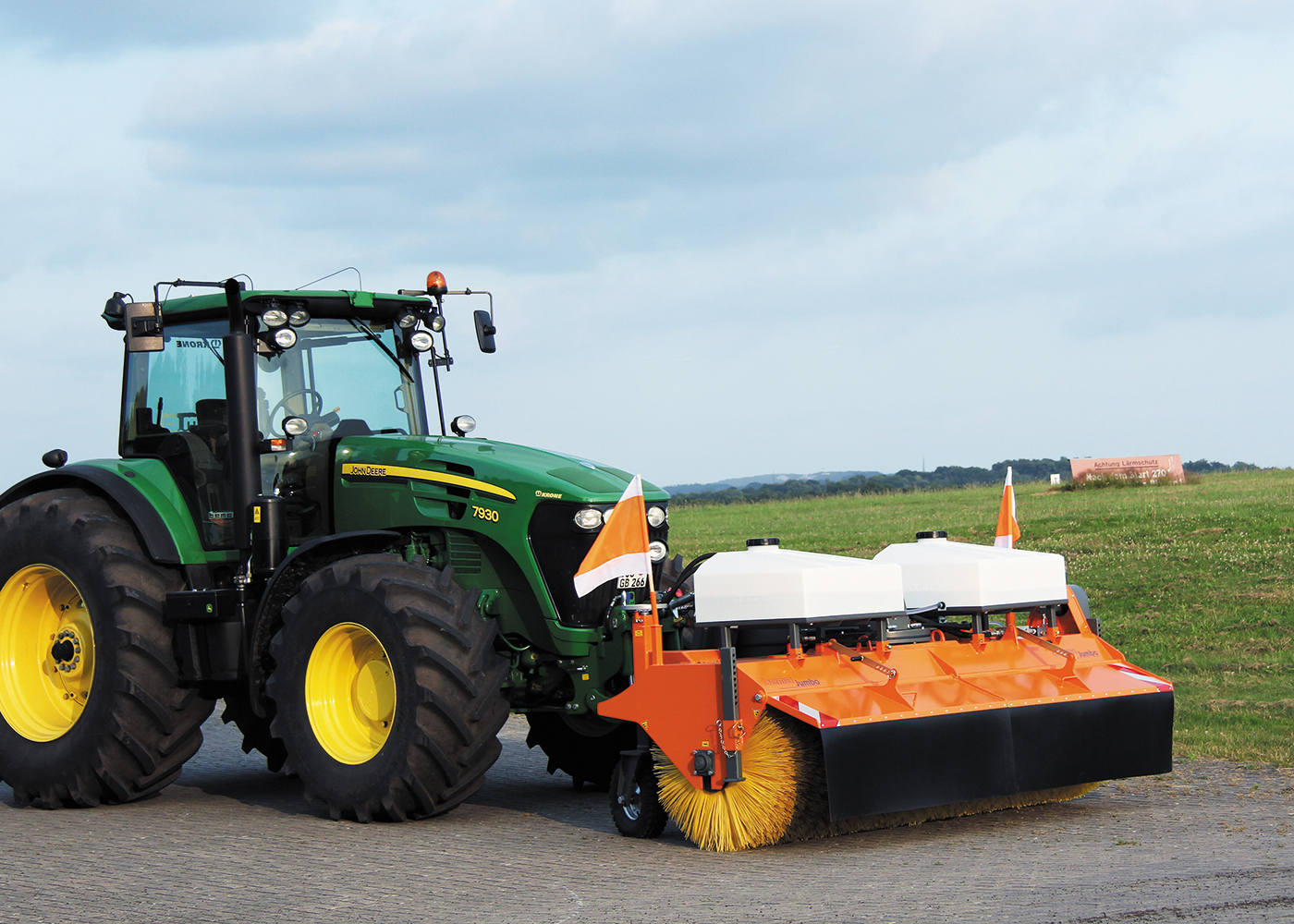

Wheel loader attachment quick hitch with roller level compensationand hight control indicator „bema-Meter“.Tractor front or rear mounted linkagewith roller level compensation and hight control indicator „bema-Meter“
-
Health and Safety
Bema Sweepers UK & Ireland ensures that all applicable products are compliant with British/European standards and come with a CE/UKCA mark.
-
Warranty
Bema Sweepers UK & Ireland offer a 12 (twelve) month warranty on all new products effective from the date of despatch from Bema UK & Ireland which covers against faulty materials and workmanship. The warranty is exclusively to the supplying agent. The warranty is on condition that the fault is reported immediately to the agent, and that the faulty component/ part is made available to Bema UK & Ireland via the agent. Replaced parts carry a 90-day warranty. Bema UK & Ireland’s warranty does not cover faults caused by inadequate maintenance, improper use, modification or incorrect installation. Bema UK & Ireland warranty does not cover wear and tear. Within the warranty period, testing or fault diagnosis at the request of the agent will be carried out without charge to the agent if the defects are established to be manufactures fault, otherwise the purchaser is liable for all costs. Warranty does not cover malicious or accidental damage.
Spare Parts
Do you want spare parts for this product?Specification

Working Width (mm)
2750 | 3000 | 3250 | 3500

Brush Speed
Recommended 80 to max. 120 rpm

Weight for Base Model (kg)
960, 986, 1025, 1054

Application
Free sweeping

Carrier Vehicle
Wheel Loader from 12t | Tractor (front) | Tractor (rear)

Minimum Hydraulic Power of the Carrier Vehicle (L/min)
60

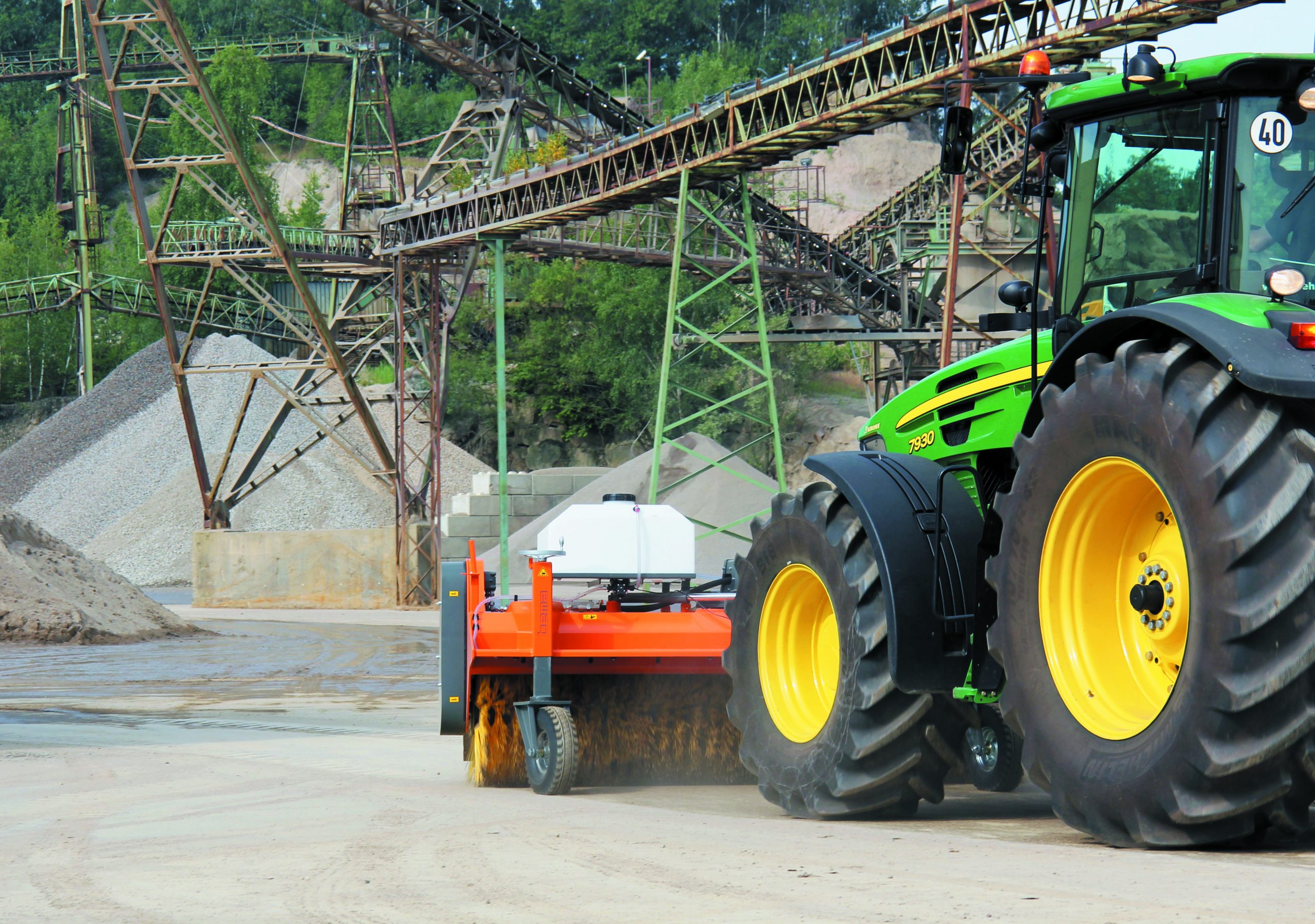

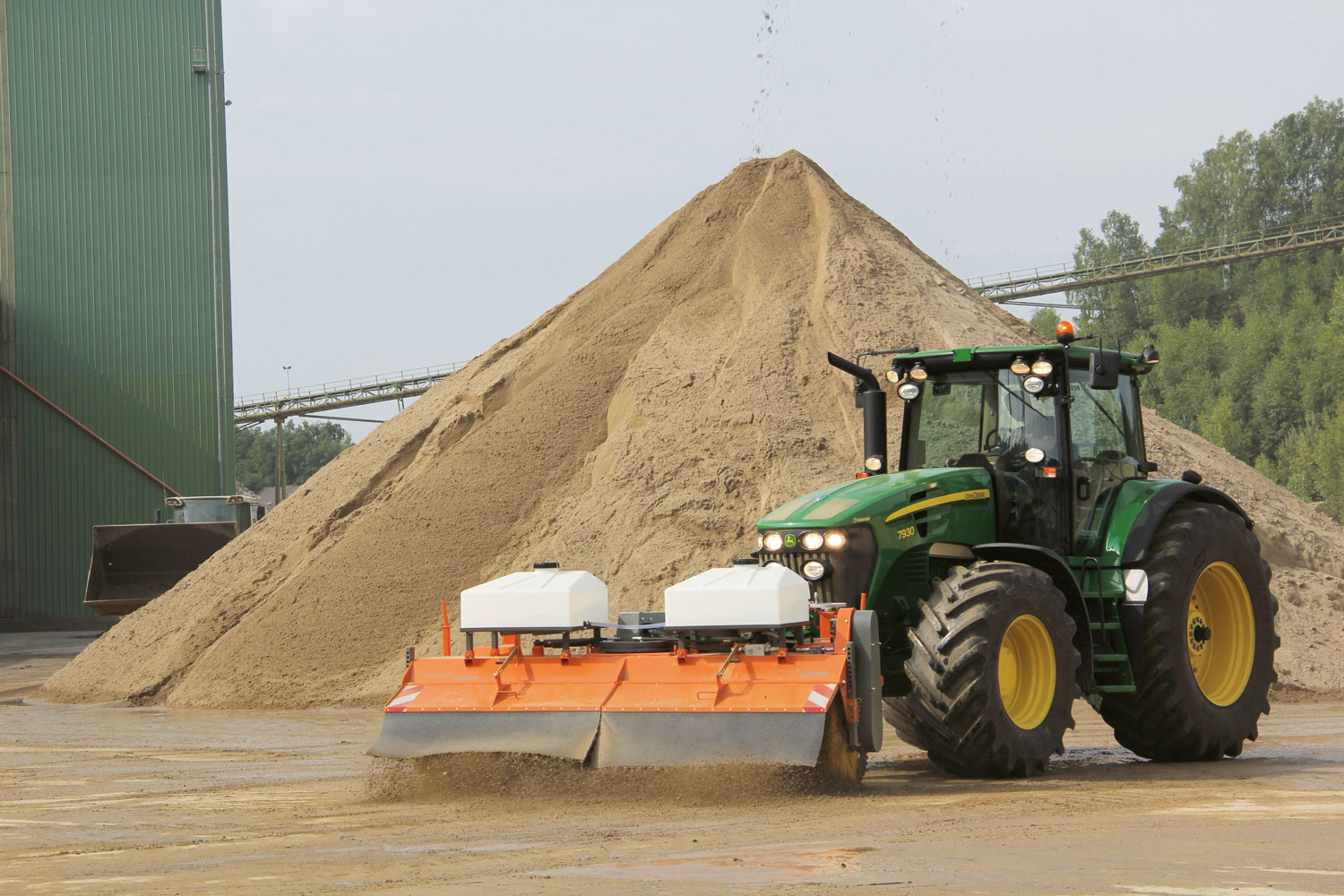

Water Spray Unit (optional)
400 litres water tank, tank filter and 12/24 volts pressure pump(direct injection of water into the main brush)

Wheels

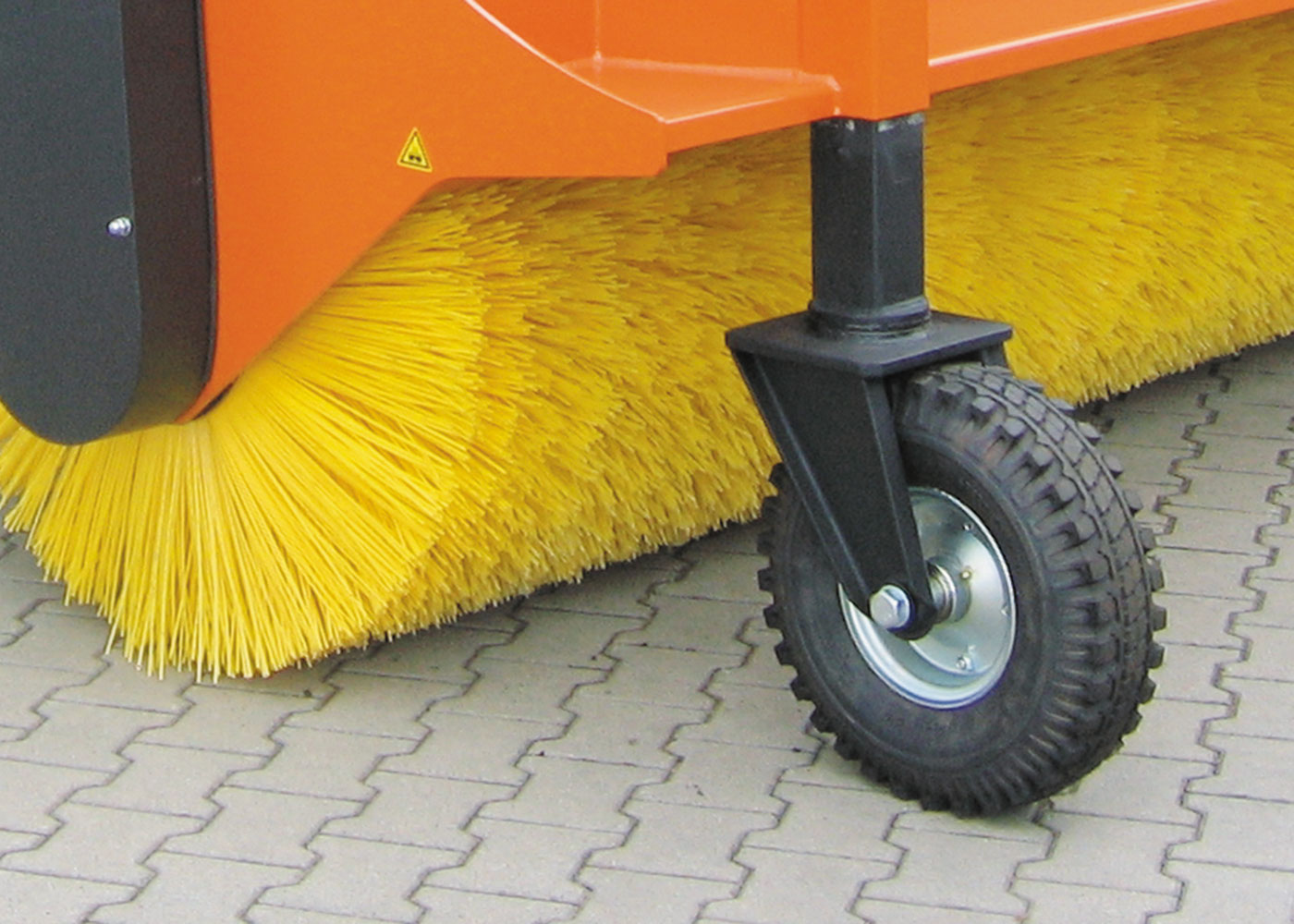

Pneumatic tyres Ø 460 x 145 mm with reinforced rim 4 mm,optional super-elastic solid rubber wheels Ø 446 x 122 mm with reinforced rim 4 mm,height-adjustable

Drive
Hydraulic drive, powerful Gerotormotor with drive shaft Ø 32 mm,completely inside (heavy series).Optional mechanical drive incl. drive shaft (simplex chain)or reinforced mechanical drive incl. drive shaft (duplex chain, for winter service 250 rpm)

Other Equipment (optional)
Hydraulic swivel device (20° to the left/right);bema Control (control unit) incl. wireless remote controller (from 3 functions available);

Main Brush

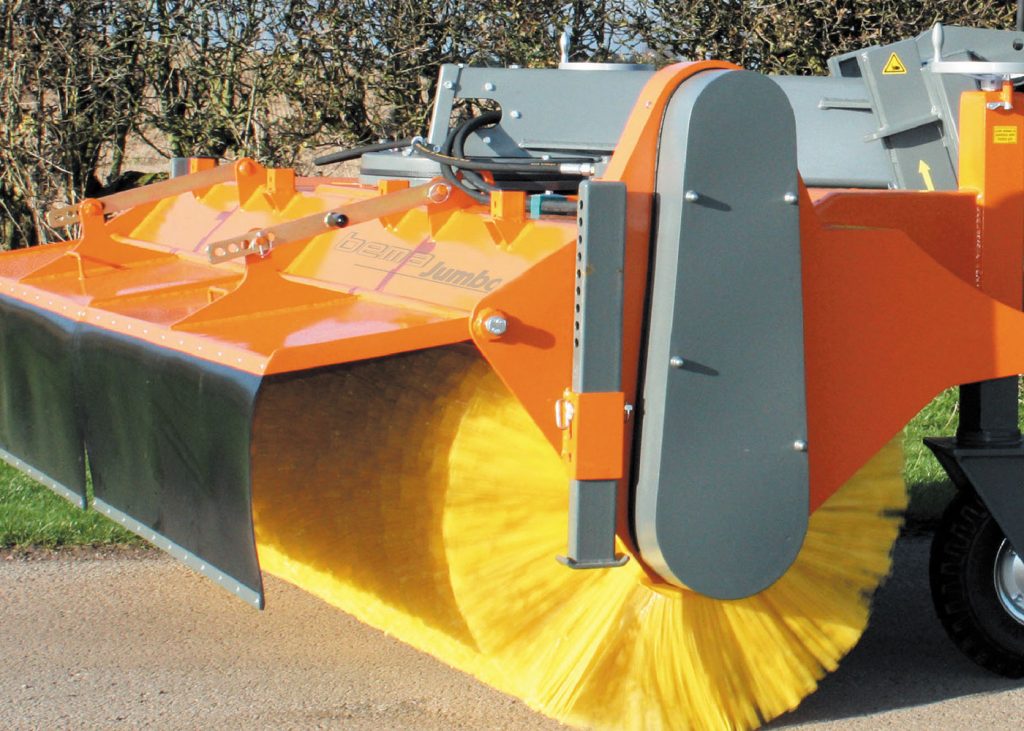

Ø 920mm; PPN BEE-LINE power brush with honeycomb rings (no PVC);Tool-free and stepless adjustment of the main brush via adjusting spindle

Rotary Side Brushes (optional)
Ø 800 mm;Hydraulic drive including bema SideControl(comfort operation, combines 3-way valve and speed controller),rotary side brushes are available for the right and/or left side,inclusive hydraulic device for folding up of the rotary side brush,selectable brushes: PPN, steel/PPN or steel fl at wire
