Specification

Working Width (mm)

2050 | 2300 | 2600 | 2850

Brush Speed

Recommended 100 to max.150 rpm

Weight for Base Model (kg)

470,485,490, 500

Application

Free sweeping | Sweeping & taking up dirt | Combination scraping / free sweeping | Combination scraping / free sweeping / high-pressure | Combination scraping / sweeping / collecting dirt

Carrier Vehicle

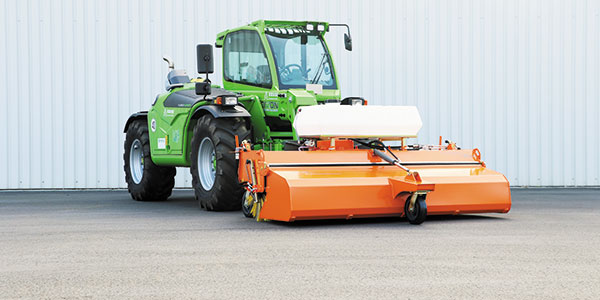

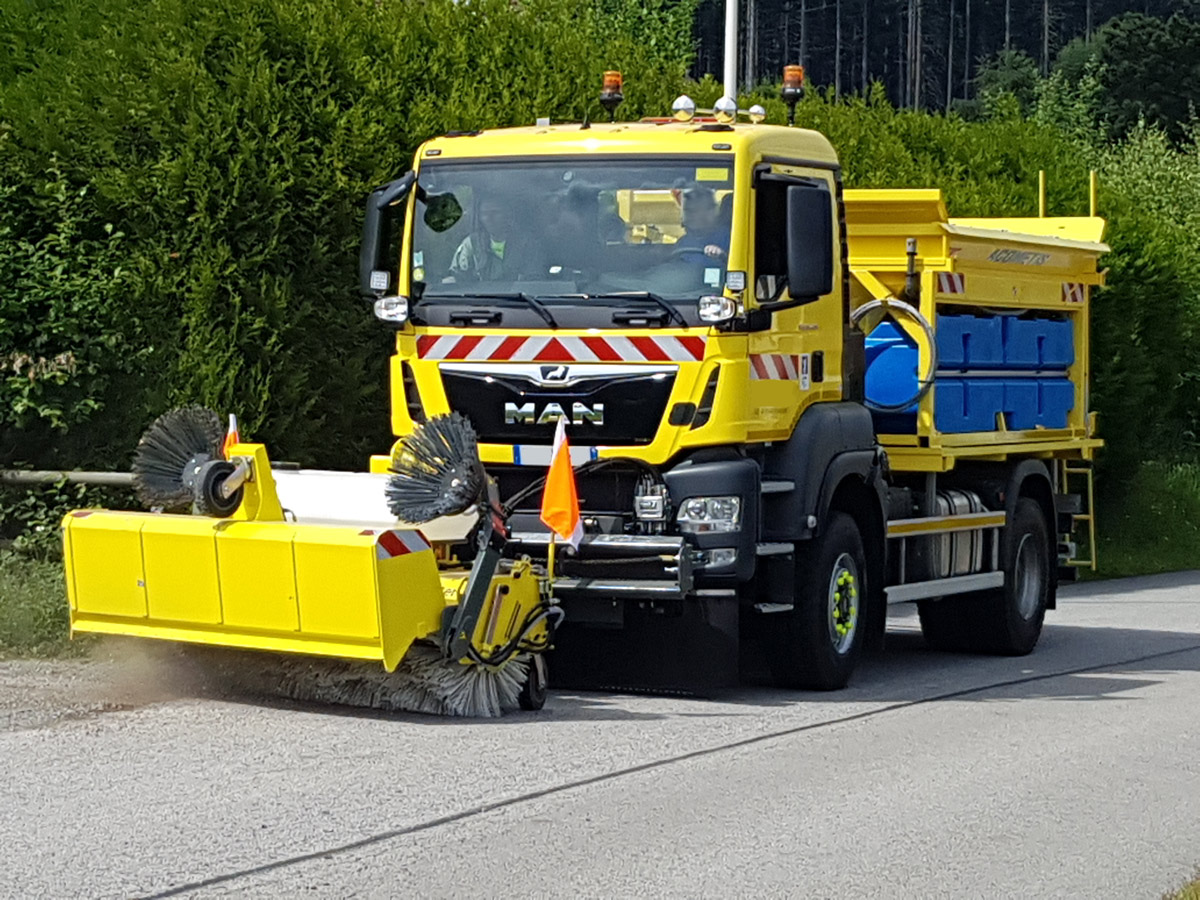

Forklift | Wheel loader 7 t to 12 t | Wheel loader up to 7 t | Tractor (front) | Telehandler | Unimog truck"

Collection Container Volume (L)

480, 540, 610, 670

Minimum Hydraulic Power of the Carrier Vehicle (L/min)

40, 40, 80, 80

Water Spray Unit (optional)

240/400 l water tank, tank filter and 12/24 Volt pressure pump(direct injection of water into the main brush and rotary side brushes)

Wheels

Super-elastic wheels Ø 300 x 90 mm (railsafe)

Drive

Hydraulic drive, one or two powerful Gerotormotor (size dependant) with drive shaft Ø 32 mm(completely inside, heavy series);optional mechanical drive incl. drive shaft

Other Equipment (optional)

Hydraulic swivel device (20° to the left/right);hydraulic lateral movement (500 mm to the left/right);bema Scraper unit without/with collection container;bema High pressure water unit 120 bar/50 bar;bema Control (control unit) incl. wireless remote controller (from 3 functions available);

Main Brush

Ø 700 mm;steel/PPN mixture brush (spiral segments), PPN or snow brush PPN;special equipment: steel flat wire/PPN mixture brush

Rotary Side Brushes (optional)

Ø 600 mm;hydraulic drive incl. bema SideControl (comfort operation, combines 3-way valve and speed controller);rotary side brushes are available for the right and/or left side.Selectable brushes: PPN, steel/PPN, steel flat wire/PPN, steel flat wire, weed brush
