Description

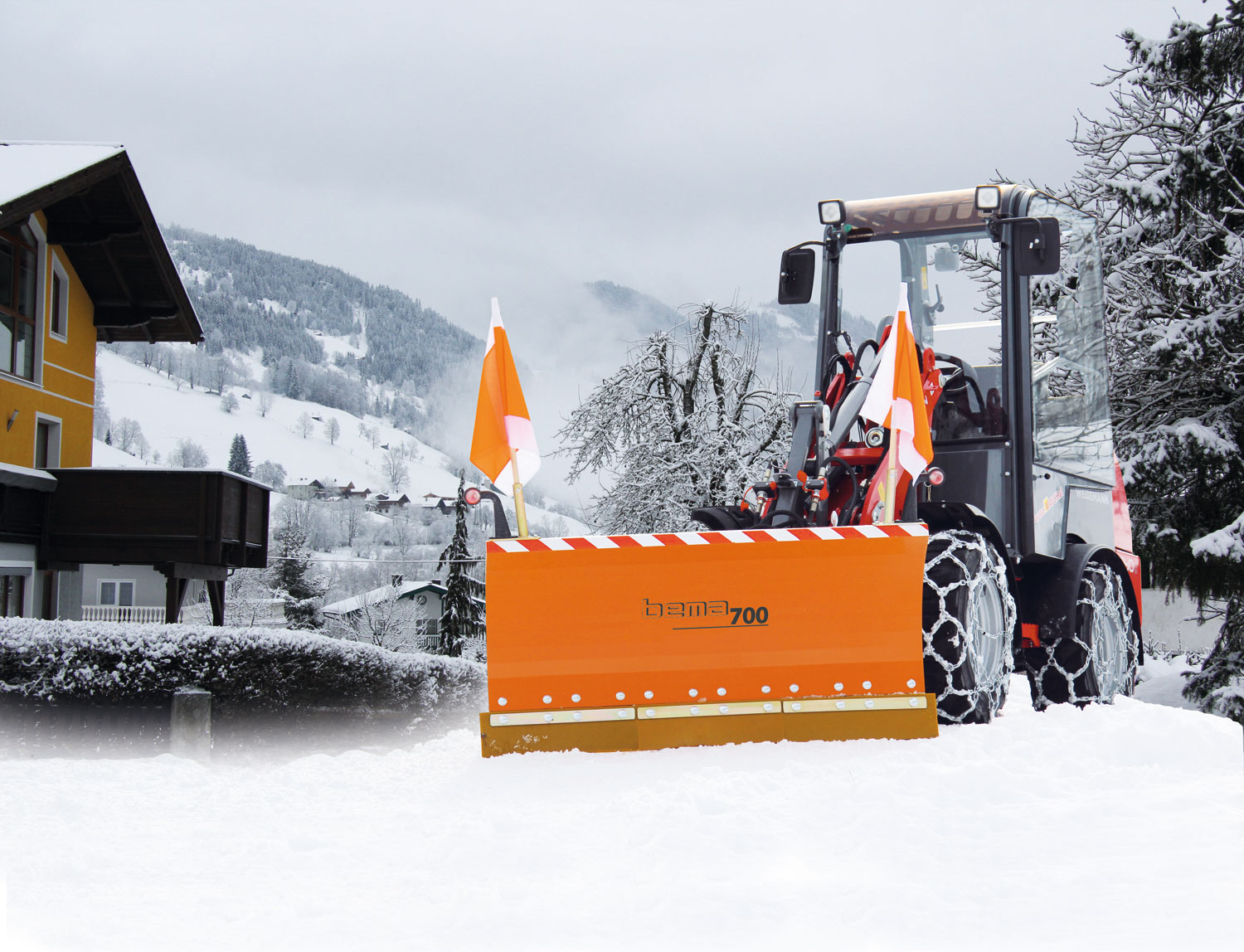

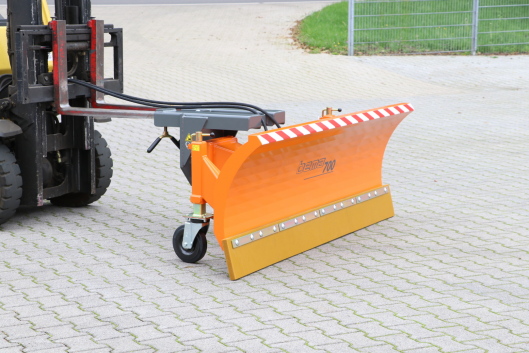

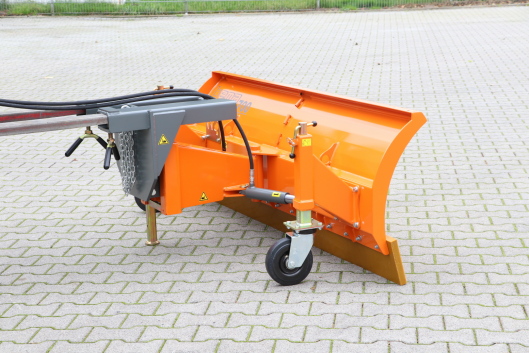

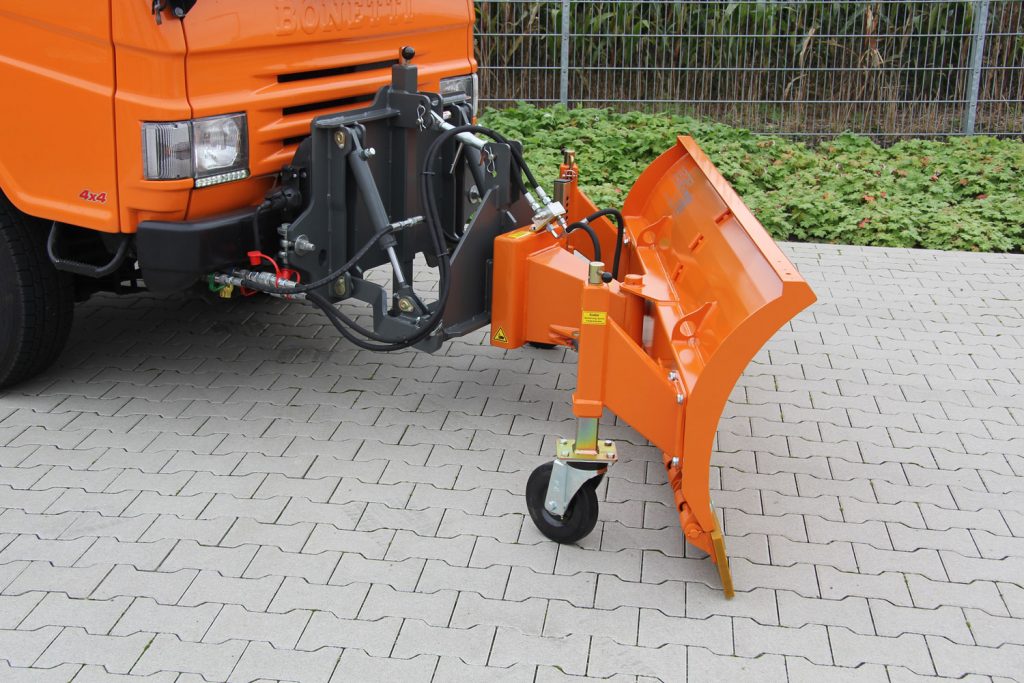

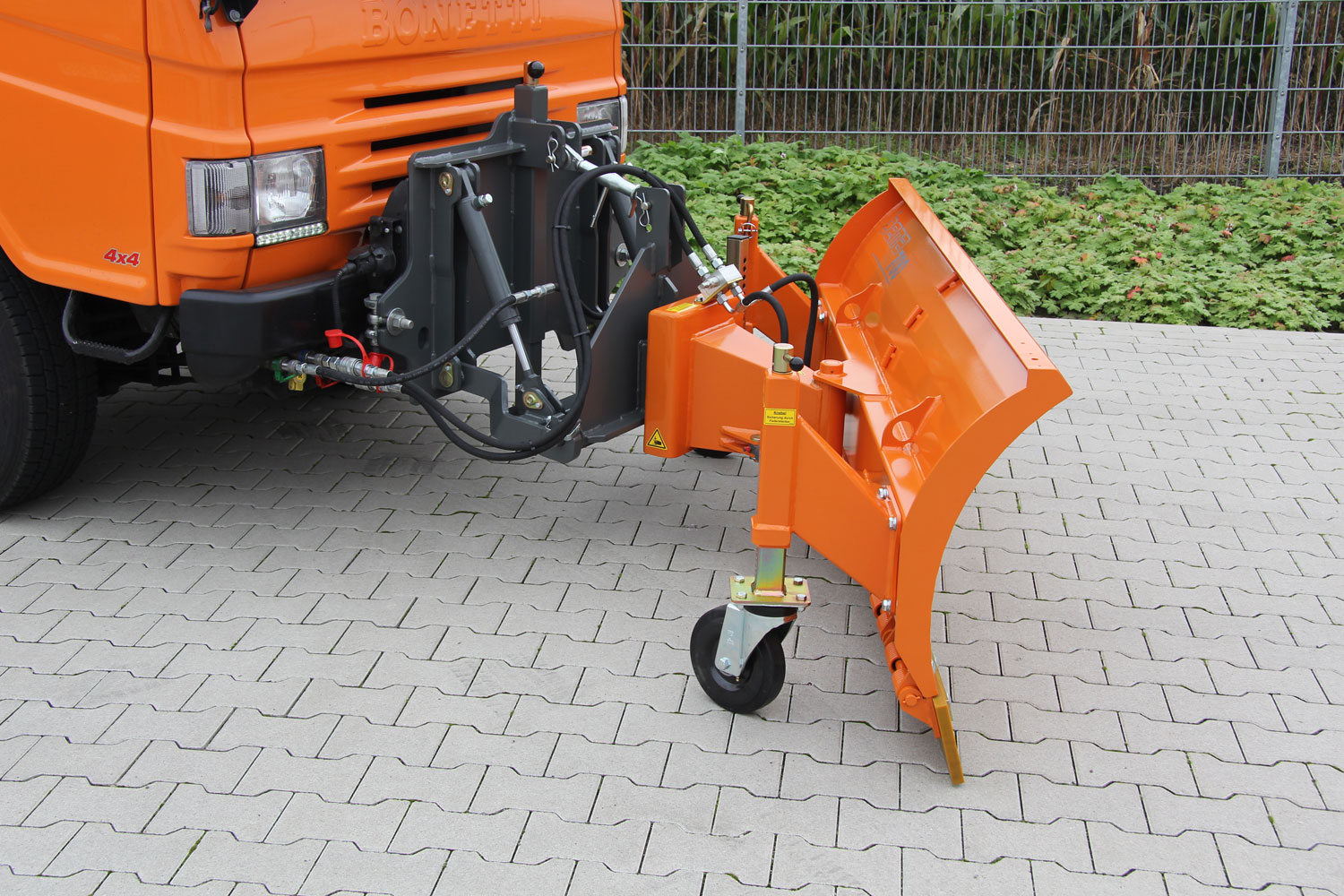

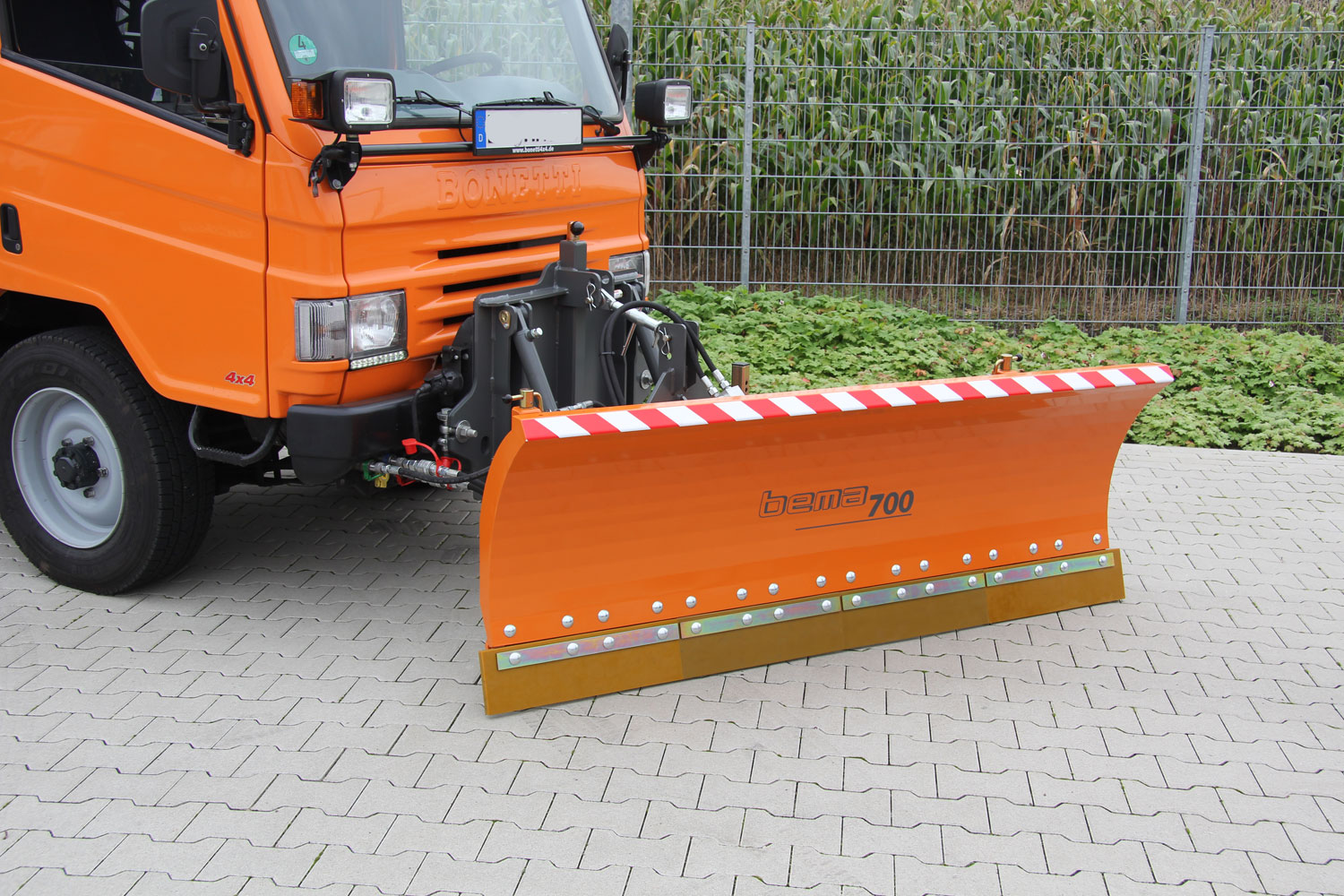

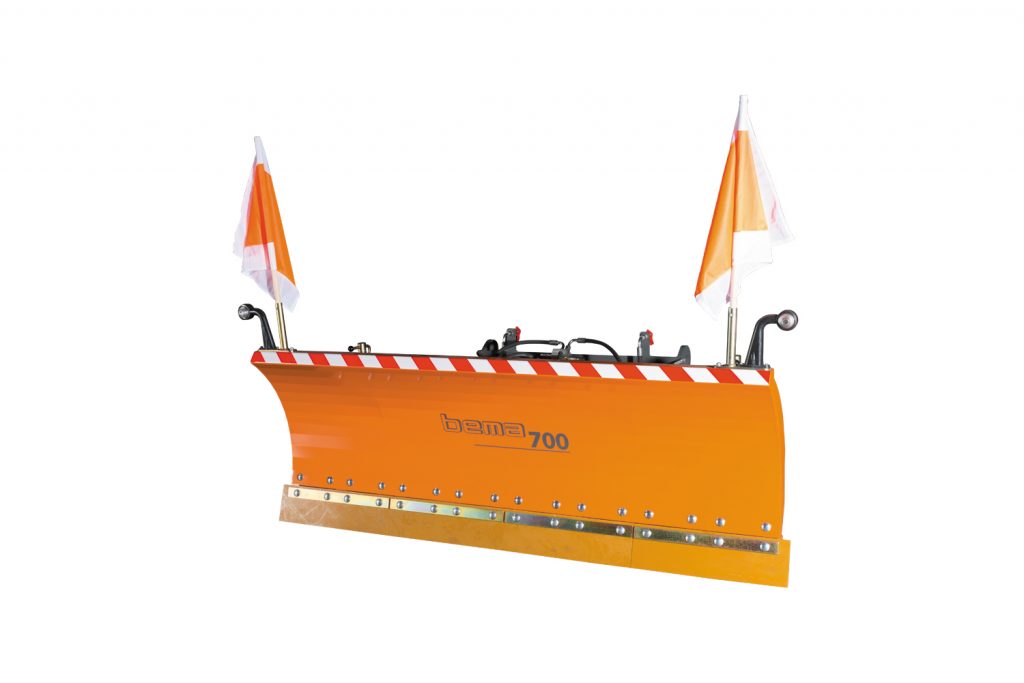

bema snow ploughs were developed for use on a wide variety of carrier vehicles. Through optimum adaptation to the ground, low-wear polyurethane clearing blades ensure that the snow is cleared without damaging the pavement. The stability of the snow plouhs is achieved by lateral and upper edges on the body of the plough. The individual selection of basic equipment provides greater flexibility. It comes with a Mechanical swivel device as standard.
-
Attachment System Types
Attachment for municipal tractor triangle/3-point attachment Cat. 0/I/II;Attachment for municipal vehicles mounting plates with roller levelling;Forklift attachment with roller levelling;Quick change adaptor with roller levelling (for wheel and yard loaders)
-
Health and Safety
Bema Sweepers UK & Ireland ensures that all applicable products are compliant with British/European standards and come with a CE/UKCA mark.
-
Warranty
Bema Sweepers UK & Ireland offer a 12 (twelve) month warranty on all new products effective from the date of despatch from Bema UK & Ireland which covers against faulty materials and workmanship. The warranty is exclusively to the supplying agent. The warranty is on condition that the fault is reported immediately to the agent, and that the faulty component/ part is made available to Bema UK & Ireland via the agent. Replaced parts carry a 90-day warranty. Bema UK & Ireland’s warranty does not cover faults caused by inadequate maintenance, improper use, modification or incorrect installation. Bema UK & Ireland warranty does not cover wear and tear. Within the warranty period, testing or fault diagnosis at the request of the agent will be carried out without charge to the agent if the defects are established to be manufactures fault, otherwise the purchaser is liable for all costs. Warranty does not cover malicious or accidental damage.
-
Video
bema Snow-plough series 700
CONVINCING IN WINTER SERVICEThe middle blade in six working widths
Spare Parts
Do you want spare parts for this product?Specification
Working Width (mm)
1300 | 1550 | 1800 | 2050 | 2300 | 2550
Weight for Base Model (kg)
120, 130, 140, 150, 185, 195
Application
Pushing
Carrier Vehicle
Forklift | Yard loader | Municipal vehicles | Compact tractor (front) | Wheel loader up to 7 t | Tractor (front)
Wheels
stepless height-adjustable standard wheels Ø 200 x 50 mm or heavy-load wheels Ø 200 x 50 mm or stepless height-adjustable skid plates Ø 180 mm.
Other Equipment (optional)
Hydraulic swivel device links 30° by 2 cylinders with/without overload protection. Spring flap segments with polyurethan trim 20 x 150 mm (depth x height, separate segments).
Clearing Width Swivelled at 30° (mm)
1115, 1330, 1540, 1750, 1965, 2180
Standard Height / Depth (mm)
710 / 735
