Specification

Working Width (mm)

2600 | 2800 | 3200

Brush Speed

Recommended 100 to max. 140 rpm

Weight for Base Model (kg)

675, 740, 831

Application

Free sweeping | Sweeping & taking up dirt | Combination scraping / free sweeping | Combination scraping / free sweeping / high-pressure | Combination scraping / sweeping / collecting dirt

Carrier Vehicle

Wheel loader 7 t to 12 t | Wheel loader from 12 t | Tractor (front) | Telehandler

Collection Container Volume (L)

810, 870, 1000

Minimum Hydraulic Power of the Carrier Vehicle (L/min)

60, 70, 80

Water Spray Unit (optional)

240/400 litres water tank, tank filter and 12/24 volts pressure pump(direct injection of water into the main brush and rotary side brushes)

Wheels

Super-elastic solid rubber wheels Ø 260 x 85 mm with robust cast wheel centres

Drive

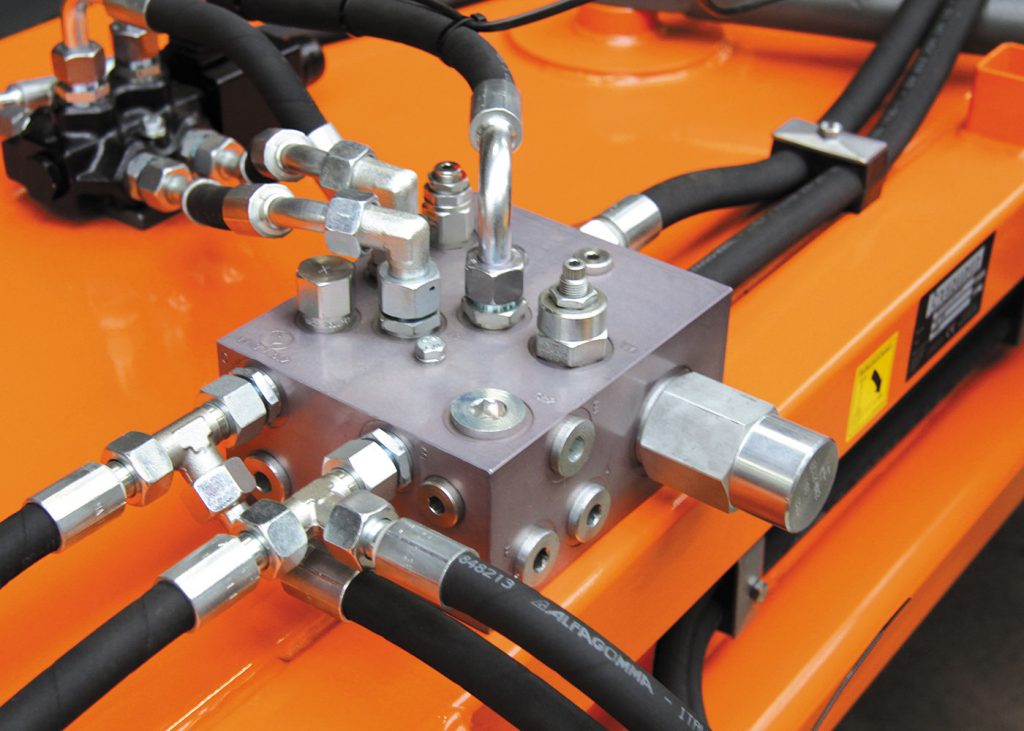

Hydraulic drive, two powerful Gerotormotors with drive shaft Ø 32 mm, completely inside (heavy series)

Other Equipment (optional)

Hydraulic swivel device (20° to the left/right);bema Scraper unit without/with collection container;bema High pressure water unit 120 bar/50 bar;bema Control (control unit) incl. wireless remote controller (from 3 functions available);

Main Brush

Ø 780 mm;Steel fl at wire/PPN spiral segments brush, PPN or snow brush PPN,toolless and stepless adjustment of the main brush via adjustment spindle

Rotary Side Brushes (optional)

Ø 780 mm;Hydraulic drive including bema SideControl (comfort operation, combines 3-way valve and speed controller),rotary side brushes are available for the right and/or left side,selectable brushes: PPN, steel fl at wire/PPN or steel fl at wire
